零序互感器

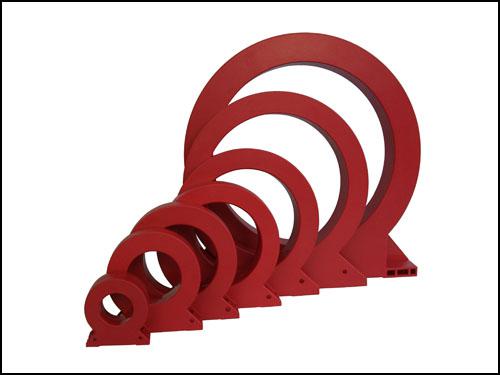

防火漏电零序系列互感器
用零序电流互感器选型表 | |||||||||
单位：mm | |||||||||

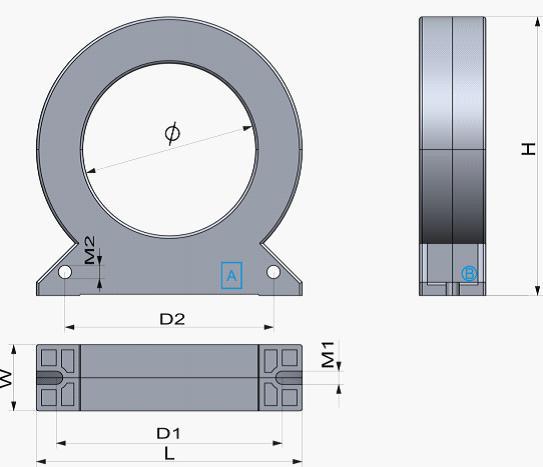

系列型号 | 主回路电流 | 窗口 | 外形尺寸 | 固定尺寸 | |||||
|
| Φ | L | H | W | D1 | M1 | D2 | M2 |
CT910100 | 0—63A | 25 | 50 | 55 | 22.3 | 40 | 4 | 38 | 3 |
CT910200 | 0-100A | 45 | 78 | 86 | 24.3 | 64 | 5 | 60 | 4 |
CT910300 | 0-160A | 65 | 100 | 105 | 25.3 | 85 | 5 | 78.5 | 5 |
CT910400 | 0-225A | 80 | 116 | 120 | 28.3 | 95 | 6 | 91.5 | 5 |
CT910500 | 0-400A | 105 | 145 | 150 | 25 | 127 | 6 | 106 | 5 |
CT910600 | 0-630A | 150 | 188 | 194 | 28 | 164 | 6 | --- | --- |
CT910700 | 0-1000A | 200 | 252 | 270 | 33 | 211 | 6 | --- | --- |
